T-2

LARGE SEAT TWISTLOCK

T-2 Large seat twistlock

The CONTECH® large seat twistlock T-2 is a manual twistlock which is used to secure two containers together or to secure the container to the deck. The large seat helps to divide the forces more efficient for high stack weight. They have a breaking load of 50 tons and are available in a left locking mechanism.

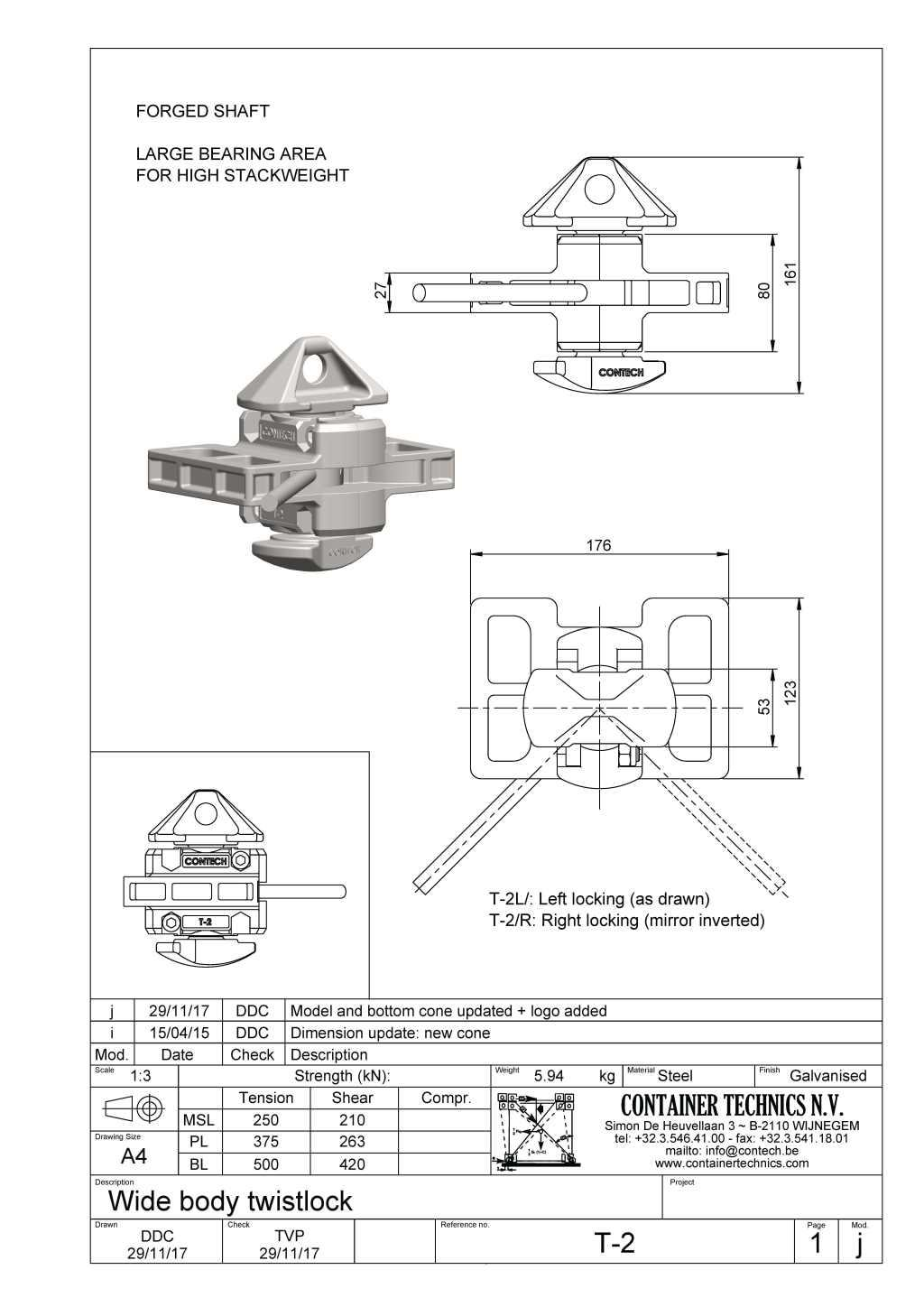

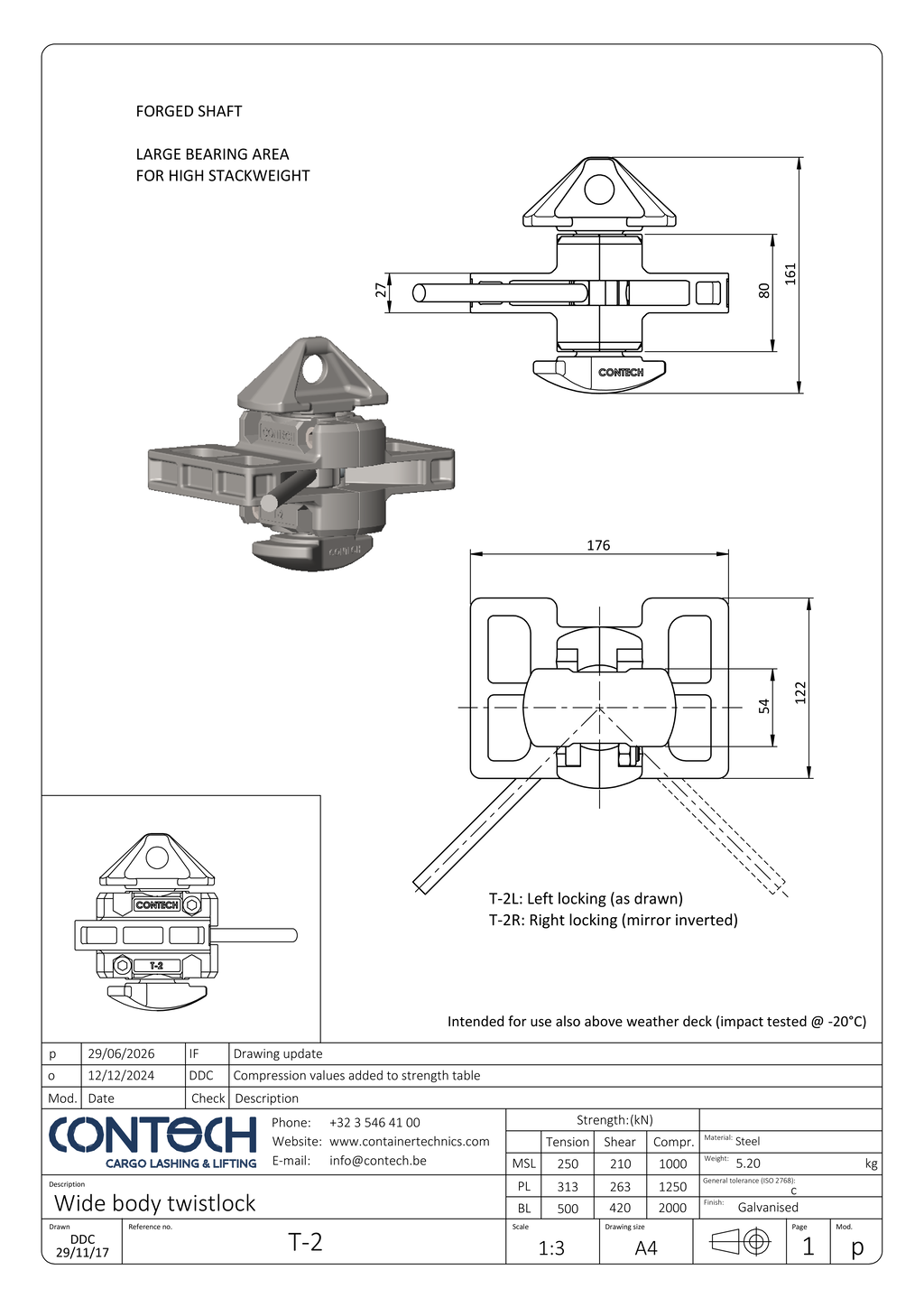

DRAWING

EQUIVALENT WITH OTHER PRODUCERS

F7-L, TL-GL, CV-8G, CV-7-W, K-66, K-6(A), CI-5-1(D), CI-5-1L, IF-51BS, C5B-LL, CV-9GR, B 34, TL-GL/L, T-2,2

‍
