CL-6A/438

BRIDGEFITTING TENSION / PRESSURE

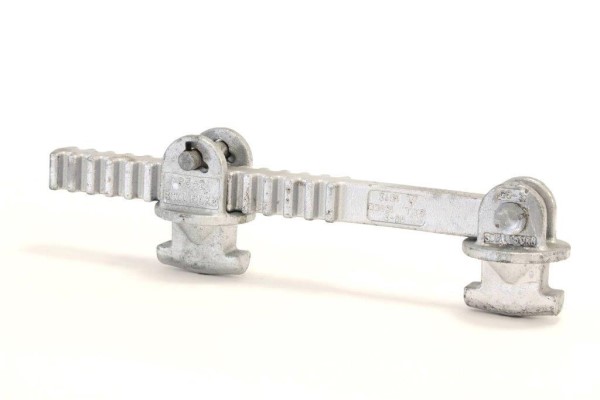

CL-6A/438 Tension pressure bridge fitting

The CONTECH® CL‑6A/438 bridge fitting is designed to safely tighten and lock the top corner castings of containers positioned in adjacent stacks, ensuring structural stability during sea transport, terminal handling, or barge operations. It allows operators to quickly create a secure connection between containers that are not in the same vertical stack but sit side‑by‑side, improving overall cargo integrity.

Key features & capabilities:

• Adjustable working range: Suitable for gaps from 178 mm to 488 mm, making it compatible with a wide variety of container arrangements and vessel deck layouts.
• Fast manual tightening: The fitting is locked into position by rigging the lever at the end, enabling crews to secure containers swiftly without additional tools.
• Works in both tension and compression:
  This means the CL‑6A/438 not only holds containers together under pulling forces but also withstands pushing forces—ideal for absorbing dynamic loads caused by vessel movement, swell, and rolling.
• Enhanced stability between stacks:
  By connecting adjacent stacks at the top corner castings, the bridge fitting reduces the risk of horizontal shifting and improves the overall rigidity of the stow.
• Robust heavy‑duty construction:
  Engineered for harsh marine environments, ensuring long service life and reliable performance.
