B-45

U-FRAME TWISTLOCK 45°

B-45 U-frame twistlock 45°

The CONTECH® dovetail or U-frame twistlock B-45 is a bottom twistlock used in combination with a dovetail or U-frame FR-31B, FR-31Q (elongated) or a FR-32B/A. It has a guiding angle of 45 degrees to secure the corner castings of containers on board of a vessel. As the twistlock is placed on top of the hatch cover or deck structure all forces are transmitted through the twistlock.

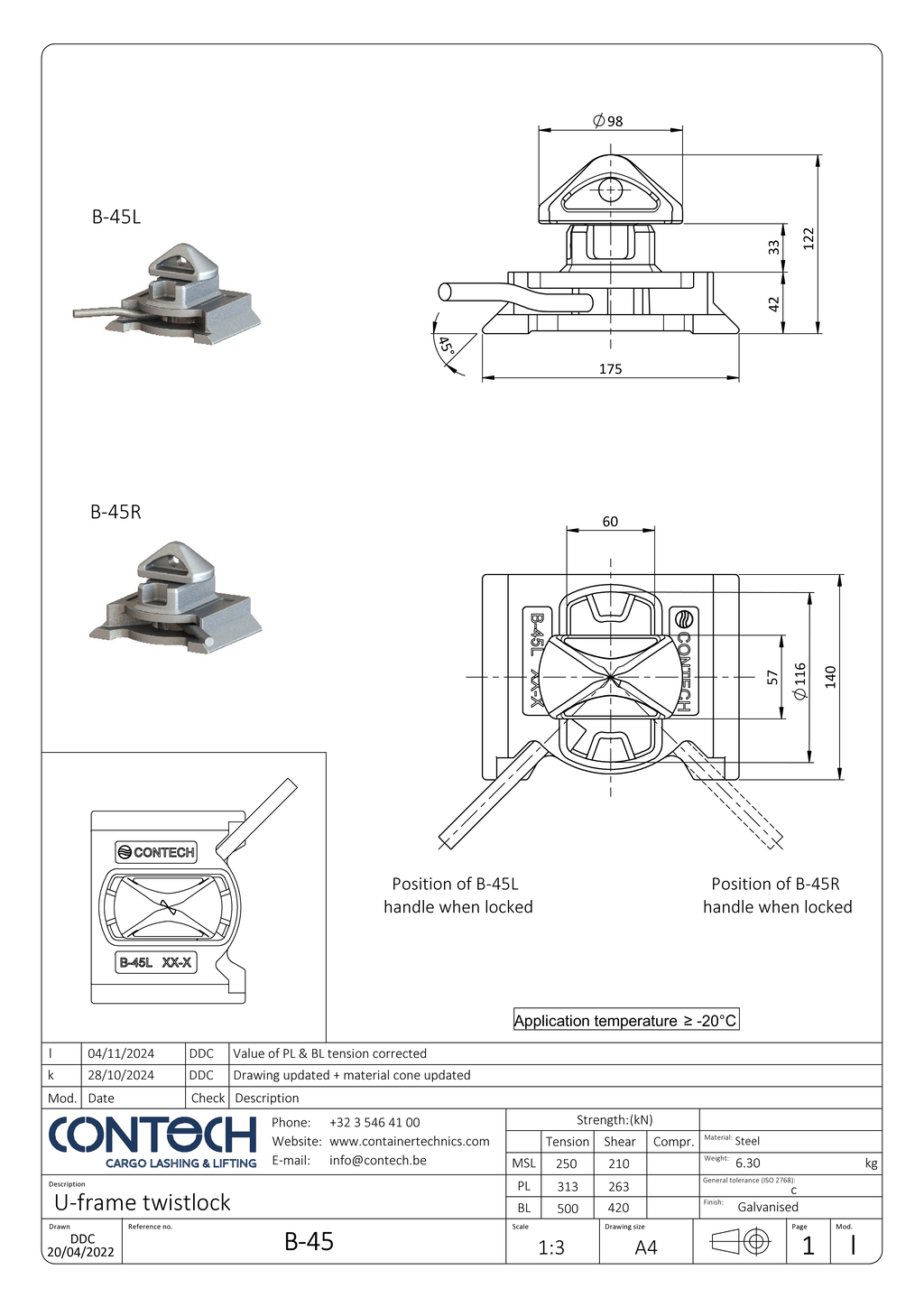

DRAWING

EQUIVALENT WITH OTHER PRODUCERS

F1-1L,  K-15 / CV-5IR, F596, BF-11, CB-25-1L, C44

‍
